BK
Bilge & Sludge Pump
The progressive cavity pump is a positive displacement pump. The main components in this pump are the stator and rotor. The pump is manufactured in a wide variety of material and version to suit requirement. This eccentric screw pump is self priming and normally coupled to a gear motor with low speed to enable pumping of liquid with various viscosities.
| DIMENSIONS | CAPACITY | ||||||
|---|---|---|---|---|---|---|---|
| Model | A | B | C | Inlet | Outlet | Max Capacity (m3/h) |
Max Head (m) |
| BK021-1L | 145 | 410 | 870 | 32 | 32 | 3 | 60 |
| BK032-1L | 145 | 557 | 1030 | 50 | 50 | 5 | 60 |
| BK039-1L | 195 | 764 | 1400 | 65 | 65 | 10 | 60 |
| BK045-1L | 200 | 941 | 1600 | 80 | 80 | 15 | 60 |
| BK052-1L | 182 | 1079 | 1800 | 80 | 80 | 20 | 60 |
| MATERIALS | |||
|---|---|---|---|
| Casing | Rotor | Stator | Seal |
| Cast Iron | Stainless Steel | NBR Buna | Mechanical |

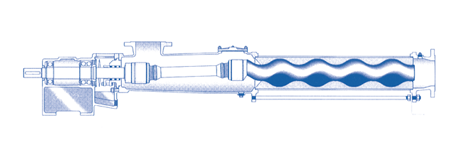

SECTIONAL VIEW |
 |

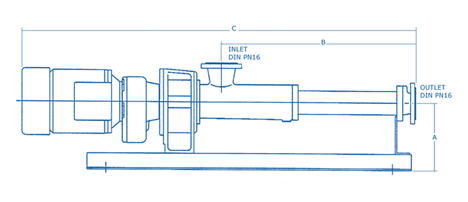

OUTLINE DRAWING |
 |
