DPV

Condensate, Boiler Feed Pump

The DPV Series pumps are multistage, single suction and vertical in-line centrifugal pumps. The pump is non self-priming with clamp sleeve coupling for easy assembly. The pump is noted for its high efficiency and durability. The pump fitted with bottom bush, ensures well balanced shaft and minimum wear. The external jacket, together with the circulating water, creates a ‘screen’ around the pump, which considerably decreases hydraulic noise. The pump is able to handle liquid up to temperature 110°C.


DIMENSIONSPERFORMANCE
Model A B C Inlet Outlet Max Capacity
(m3/h)		 Max Head
(m)		 Max Speed
(rpm)
DPV1 200 80 248 G1 1/4 G1 1/4 8 150 3500
DPV2 200 80 248 G1 1/2 G1 1/2 14 150 3500
DPV3 200 80 248 G2 G2 24 150 3500
DPV4 320 105 235 80 80 30 240 3500
DPV5 320 105 235 80 80 40 240 3500
DPV6 320 105 235 80 80 60 180 3500
DPV7 320 105 235 80 80 90 180 3500
MATERIALS
Casing Impeller Jacket Shaft Seal
Cast Iron Noryl Stainless Steel Stainless Steel Mechanical Seal
Cast Iron Bronze Stainless Steel Stainless Steel Mechanical Seal

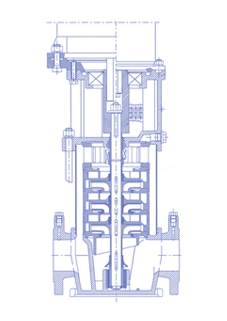

SECTIONAL VIEW

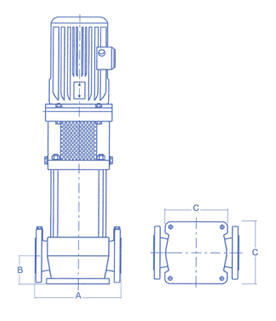

OUTLINE DRAWING
