DPC

Bilge Pump

The DPC Series pumps are piston pump driven by v-belt. The pump is positive displacement, self-lubricating, running at relatively low speed particularly durable and are suitable for continuous operation. The pump is noted for its high reliability by having a robust design with two outlet options, its high suction up to 8.5m cold water, its V Belt driven by Electric Motor through Pulley enables adjustable revolution and power for required pressure and discharge volume.


DIMENSIONSPERFORMANCE
Model L W H Inlet Outlet Max Capacity
(m3/h)		 Max Head
(m)		 Max Speed
(rpm)
DPC 101 450 208 345 32 25 2 60 280
DPC 102 620 290 450 50 40 7 60 230
DPC 103 640 290 490 65 50 10 60 230
DPC 104 875 405 560 75 65 20 60 230
DPC 105 900 410 595 100 75 30 60 230
DPC 106 1030 470 740 100 100 60 60 200
MATERIALS
Casing Piston Shaft Seal
Cast Iron Bronze Stainless Steel Gland Packing

SECTIONAL VIEW

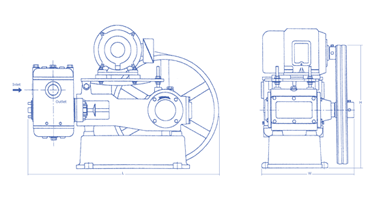

OUTLINE DRAWING
