DV
Cooling Water, Ballast, Fire & G.S. Pump
The DV Series pumps are single stage, single suction vertical in-line centrifugal pump. The pump is radially split casing design and it is non self-priming. The pump shaft is well balanced by top ball bearing and bottom bearing bush. This ensures that the impeller is operating in optimal condition. The pump utilizes a flexible coupling, which allows the internal pump component to be removed without dismantling of the motor from the pump or the pump casing from the piping. The pump has a compact flange to flange distance allowing it to be installed in tight machinery space. The pump is noted for its robust construction, high efficiency and reliability. Self-priming of the pump can be achieved by incorporating external self-primer.
DIMENSIONS | PERFORMANCE | |||||||
---|---|---|---|---|---|---|---|---|
Model | A | C | D | Inlet | Outlet | Max Capacity (m3/h) |
Max Head (m) |
Max Speed (rpm) |
DVA 50 | 420 | 195 | 578 | 65 | 50 | 70 | 120 | 3500 |
DVA 65 | 420 | 196 | 584 | 80 | 65 | 80 | 140 | 3500 |
DVB 80 | 450 | 218 | 643 | 100 | 80 | 140 | 140 | 3500 |
DVB 100 | 450 | 224 | 657 | 125 | 100 | 180 | 140 | 3500 |
DVC 125 | 500 | 247 | 744 | 150 | 125 | 280 | 140 | 3500 |
DVC 150 | 560 | 260 | 768 | 200 | 150 | 600 | 120 | 3500 |
DVD 200 | 630 | 332 | 970 | 250 | 200 | 600 | 55 | 1750 |
DVD 250 | 710 | 382 | 1020 | 300 | 250 | 850 | 45 | 1750 |
DVE 300 | 800 | 490 | 1257 | 350 | 300 | 1200 | 40 | 1750 |
DVE 350 | 900 | 560 | 1327 | 400 | 350 | 1850 | 40 | 1750 |
MATERIALS | |||||
---|---|---|---|---|---|
Casing | Impeller | Shaft | Seal | Bearing | |
Freshwater | Cast Iron | Bronze | Stainless Steel | Mechanical Seal | Ball / Bush |
Seawater | Bronze | Bronze | Stainless Steel | Mechanical Seal | Ball / Bush |

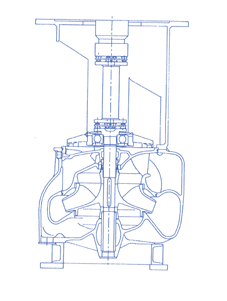

SECTIONAL VIEW |

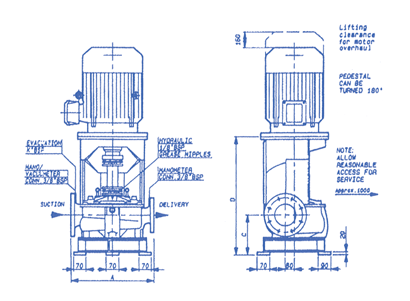

OUTLINE DRAWING |
![]() |
![]() |
