DKC
Boiler/ Hotwater Circulation Pump
The DKC Series pumps are multistage, single suction and horizontal end suction centrifugal pumps. The pump is self-priming, with combination of close and open impeller. The pump is noted for its high self priming by the liquid ring principle, Low Net Positive Suction Head and long life span. The pump is designed to pump liquid with minimum excess of pressure over boiling point, and pump crude oil derivative fuels and hydrocarbon without gaseous phrase fraction.
DIMENSIONS | PERFORMANCE | |||
---|---|---|---|---|
Model | Inlet | Outlet | Max Capacity (m3/h) |
Max Head (m) |
DKC 2 | 50 | 25 | 2.1 | 122 |
DKC 3 | 65 | 32 | 3.5 | 229 |
DKC 4 | 65 | 32 | 4.5 | 208 |
DKC 5 | 80 | 40 | 7.5 | 310 |
DKC 6 | 80 | 40 | 12 | 222 |
DKC 7 | 100 | 50 | 20 | 300 |
DKC 8 | 100 | 65 | 30 | 314 |
MATERIALS | ||||
---|---|---|---|---|
Casing | Impeller | Shaft | Seal | |
Freshwater | Cast Steel | Cast Iron | Stainless Steel | Mechanical Seal |

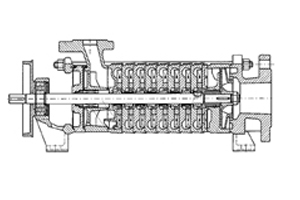

SECTIONAL VIEW |

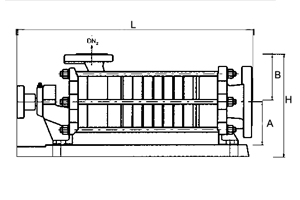

OUTLINE DRAWING |
![]() |
![]() |
